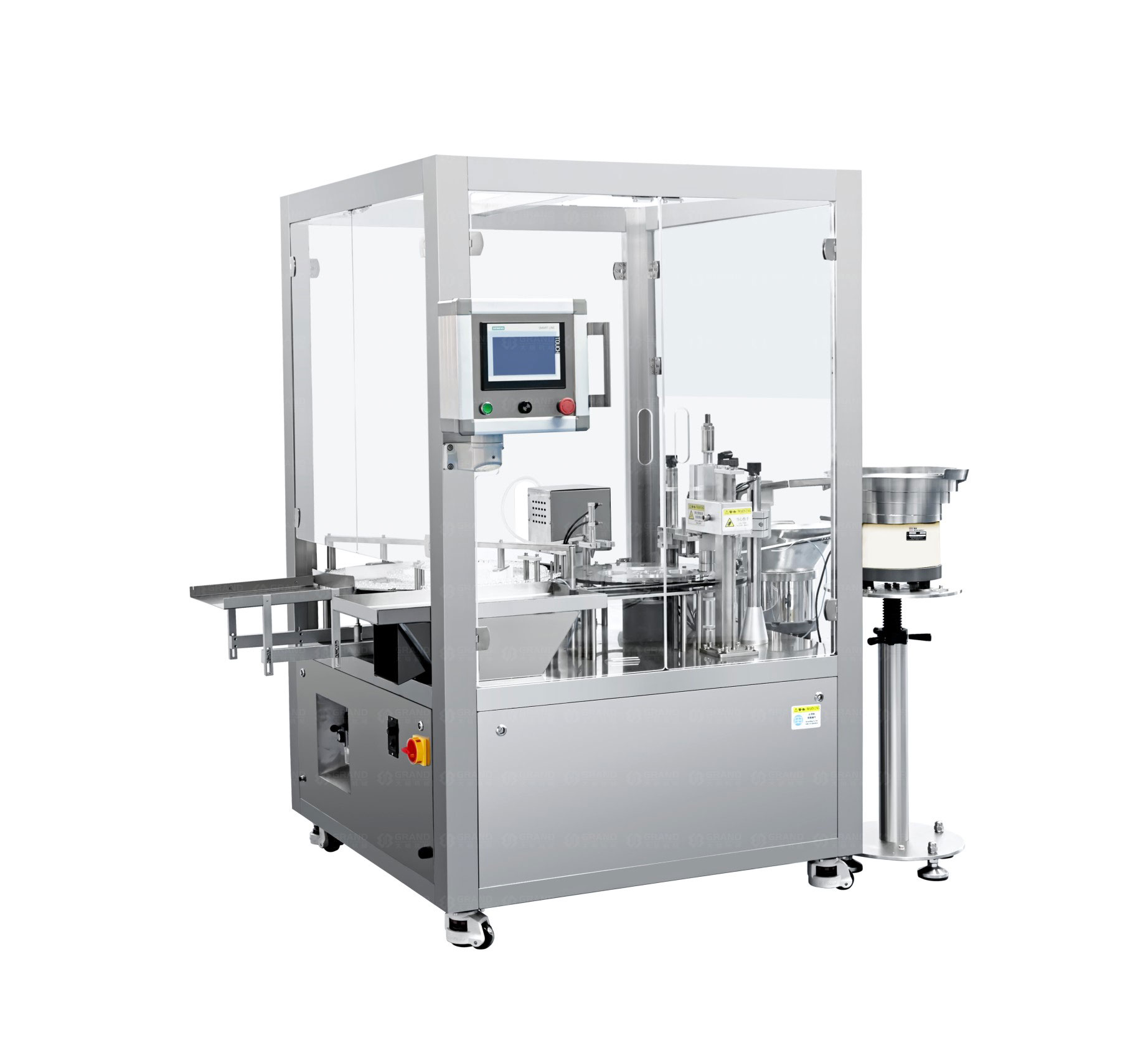

1. Brief Description
Original vibration plate lifting frame (one-person operation, can be adjusted within five minutes, no need to move the adjustment foot cup)
2. Main technical parameters
| Power supply | 220V 50/50HZ |
| Power | 2KW |
| Gas source | 0.4-0.6Mpa |
| Filling volume | 2-8ml |
| Number of filling heads | 1 |
| Filling drive | Servo motor (optional: cylinder, electric cylinder, stepper) |
| Filling mode | Ceramic shaft + PEEK gear (optional: ceramic plunger pump, peristaltic pump, piston cylinder) |
| Speed | 40-50 bottles/minute |
| Suitable bottle height | 27-50mm (other specifications can be customized) |
| Suitable bottle | diameter Customized specifications (different diameters are not universal) |
| Accuracy | ±0.3-0.5% |
| Conveyor belt | |
| Bottle unscrambler | Yes |
| Weight | 260kg |
| Filling lifting method | Cylinder (servo optional) |
| Suitable caps | Pure aluminum caps, aluminum-plastic caps, pure aluminum caps |
| Suitable inner plugs | Butyl rubber plugs, rubber plugs, silicone plugs |
