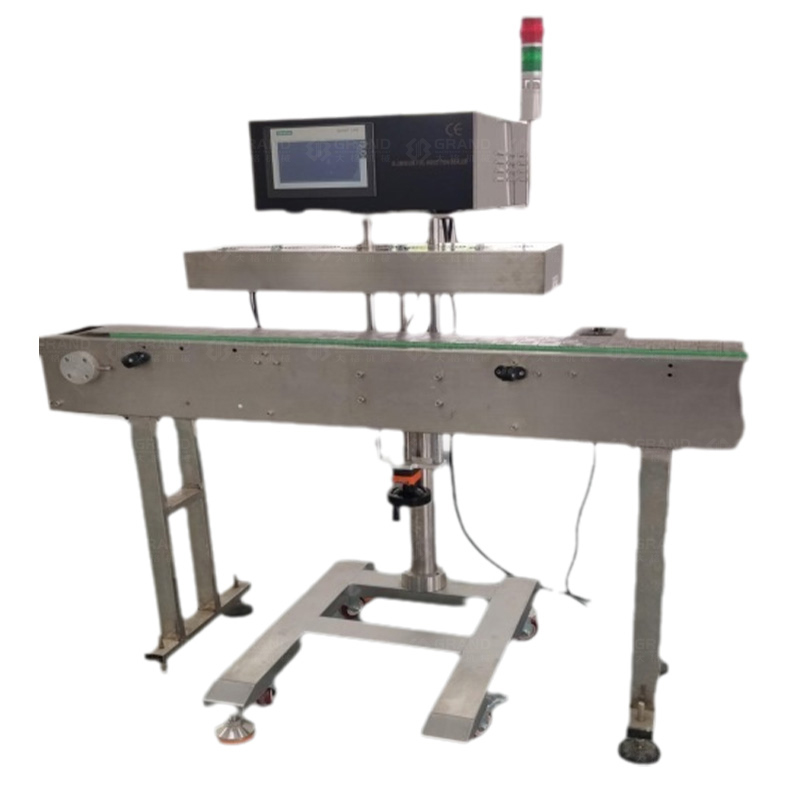

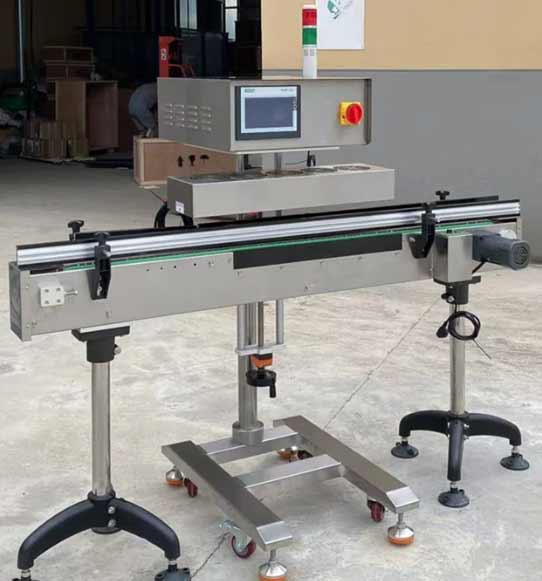

HTFK-300F Aluminium foil induction sealer (air cooling)
Brief introducing
Designed according to US standards and has no dead corners for cleaning
adjustable height of the machine frame
anti electromagnetic interference performance.
Fully enclosed module chip with long operation life
Intelligent electrical protection system (overvoltage, overcurrent, overheating)
Accurately control the magnetic and thermal intensity
Built in stabilized power supply, with constant auxiliary power output.
HMI/PLC control with sound and light alarms
Sealing rate to 99.9%
Main body SS304, protection level IP40
GMP standards and CE certificate
Main Features
 |  |
 |
|
Electrical Configuration
No. | Desc | Style | Brand |
1 | Circuit breaker | DZ47-63 C32 | DELIXI |
2 | Solid Relay | SSR-D4840A | HUAZHENG |
3 | Bridge rectifier | KBPC5010 | SEP |
4 | filter capacitor | UCGHA | YADACON |
5 | transformer | SJW-0452/EI-57 | SJW |

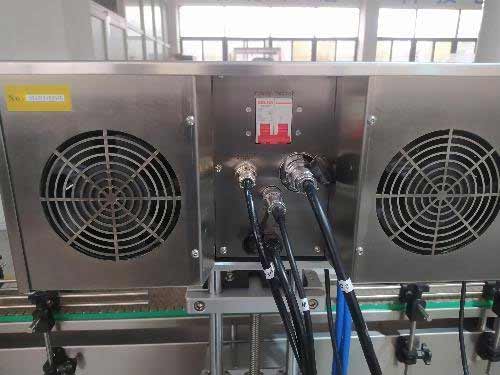

6 | Cooling fan | AC AXIAL FAN | EVERWIN |
7 | Power tube | / | TOSHIBA |
8 | integrated circuit (IC) | / | MOTOROLA |
9 | integrated circuit (IC) | / | AT，ST，Fairchild |
10 | Electrolytic pacitor | 1uF /16V | Rubycon |
11 | capacitor | MKP-X2 | CG-ELEC |
12 | polypropylene capacitor | GRAY 335 | SHENZHEN |
vSeller shall have the right to change with the same quality or upgrade configurations without notification | |||
Technical Parameter | |
Max output | 150 bottles/Min |
Bottle Size | 15~650ml |
Bottle neck size | 20-80mm |
Voltage/Frequency | AC220V, 50/60Hz 1P |
Power | 3.0KW |
Induction head size | 665x170x100mm |
Net Weight | 70Kg |
vOutput effected by the bottle/cap size vCustomized induction head for oversized cap | |
