SG-150 WEIGHT CHECKER
Brief introducing
It can be used for automatic weight detection, upper and lower limit discrimination or weight classification on various automatic assembly lines and logistics delivery systems. It can also be used for multiple and missing parts inspection after product packaging. Widely used in online testing of pharmaceutical, food, toy, hardware, chemical and other industries. In addition, it can directly replace manual weighing to improve production efficiency and consistency and reliability of weighing.
Main Features
 | Large-size color LCD touch screen interface, easy to operate and intuitive display. Support custom multi-language, the standard is Chinese and English. It can be set to store 100 kinds of product inspection data, which is convenient for users to switch calls. With automatic detection of empty package photoelectric, adjustable conveyor speed, automatic learning function. Parameter setting password protection, only management personnel operation. Automatic zero tracking system to ensure reliable detection data. |
 | SCM system independent research and development, unique filtering algorithm to ensure system stability. Simple mechanical structure, buckle-type conveyor belt, easy to disassemble cleaning and maintenance. With in line rejection system With cover on the scale to ensure the stable weighing With bottle feeding structure. Ensure stable bottles feeding withoutbottlefalling down.(optional function) Using on bottling line or individual using |
Technical parameter | |||
Model | SG-150 | ||
Weighing Range | 5-500g | ||
Accuracy | ±0.1-0.5g（Depend on product） | ||
Division Scale | 0.1g | ||
Max Speed | Max 100 Bottles/min | ||
Limited of product | Length | 200mm | |
Width | 150mm | ||
Width | 3-200mm | ||
Operation method | Touch screen | ||
Operation interface | 7 inch touch screen | ||
Rejector | Push rejector | ||
The height from Belt to ground | 850±50mm（Can be customized according to customer requirements） | ||
Main Material | Stainless steel （SUS304） | ||
Power supply | AC220V 50-60HZ | ||
Power | About 100W | ||
Table Size | 316mmX150mm | ||
Weight | About 60KG | ||
Remark | The properties and environment of the tested products are different, | ||

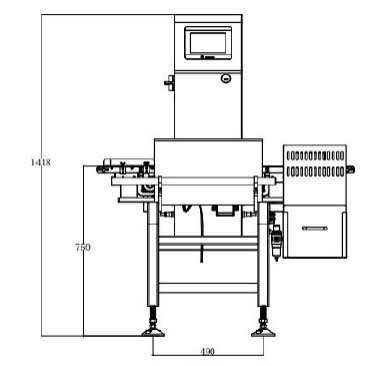

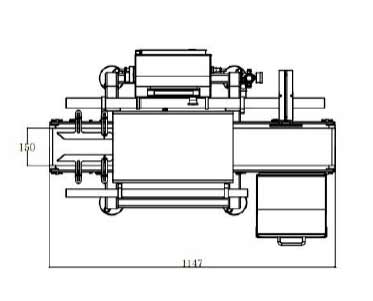

Machine Dimension | |||
|
| ||
Electrical Configuration | |||
Desc | Brand | ||
Load cell | Germany HBM | ||
Frequency converter | DELTA | ||
Touch screen | Taiwan WEINVIEW 7inch | ||
Motor | Zhong da motor | ||
Conveyor Belt | Swiss Habasit | ||
Sensor | AUTONICS | ||
Air cylinder | AIRTAC | ||
machine material | Stainless steel SU304 | ||
Seller shall have the right to change with the same quality or upgrade configurations without notification | |||
