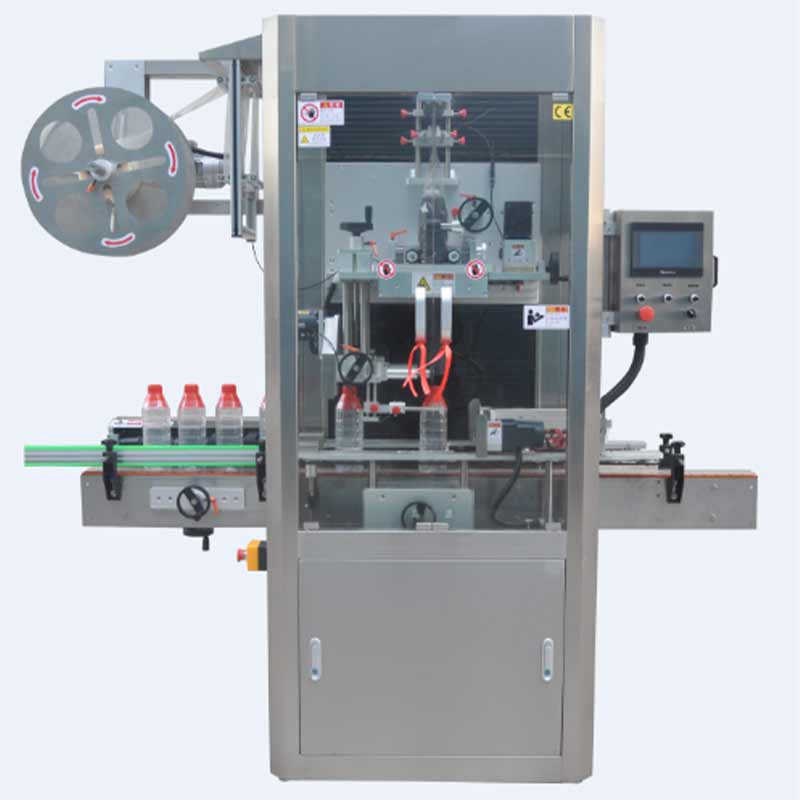

AGP-100M Sleeve Labeling Machine

Brief introducing

Sleeve labeling machine, also called sleeves labels applicator or sleeves labels inserting machine , which cut sleeves piece by piece and insert the sleeves to bottles , and then shrink the sleeves labels by steam shrinking tunnel or electrical heating tunnel to bottles tightly . The sleeves can label bottle body or seal bottles cap and neck.


Main Features

  • The frame is made of 304 stainless steel.

  • Servo system drives the machine.

  • The applicable bottle on this machine can be around, square flat, curved cup-shaped

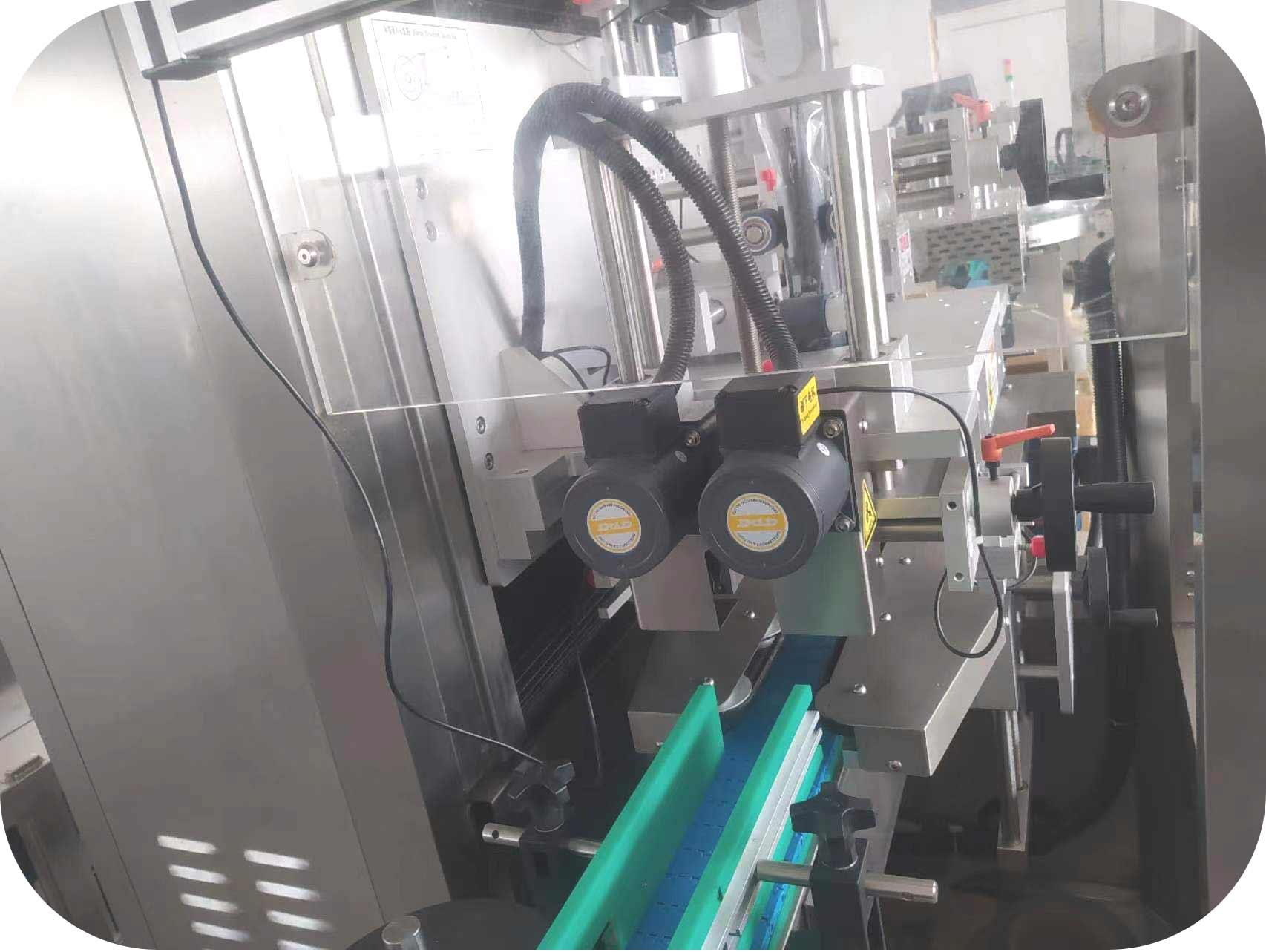

  • Easy to change mandrels and bottles separating worms to suit different bottles.

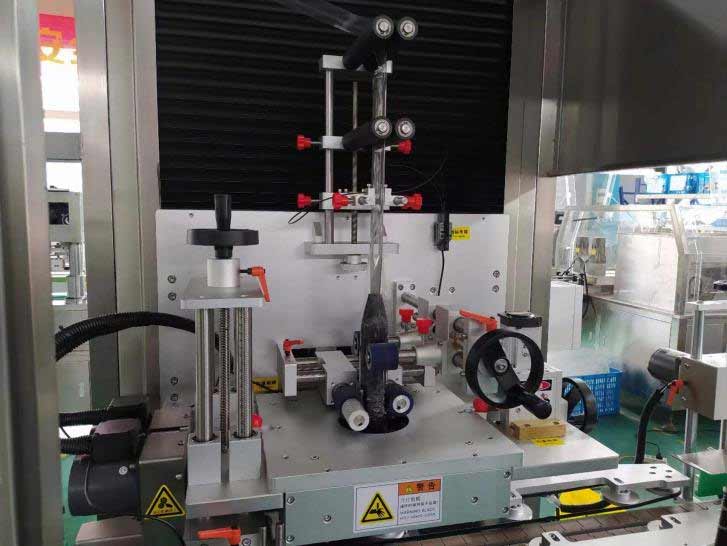

  • Unique cutter design, cut mark smoother, quick and easy blade replacement

  • No bottles, no sleeve inserting.

  • Mature program makes machines working steady

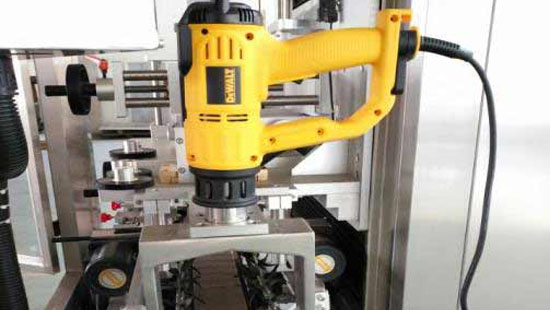

  • sleeves pre-heating device (optional if need)

  • this device is used to fix sleeve at some position on bottle so that sleeves label would not come down

  • before shrink tunnel or electrical shrink tunnel.

  • It is very easy to adjust its heating , there is temperature setting

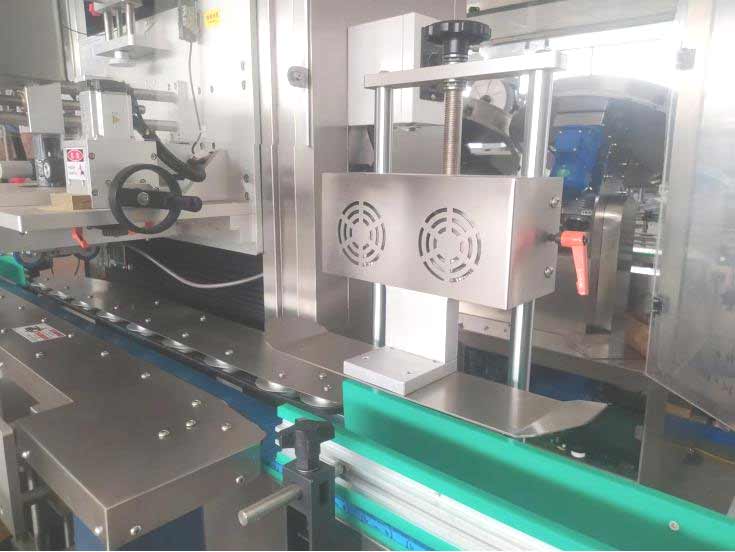

  • sleeve patting device

  • This device is used to make sure all sleeves to be put at suitable /right positions after sleeves inserting by sleeves

  • applicator /labeling machine.

  • The height of the device is easy to adjust to suit different bottles

  • Small total power, 0.25kw

  • (A small static eliminator is added up, because the sleeve for bottle neck is small and very light, without the eliminator the static will take away sleeve sometimes)

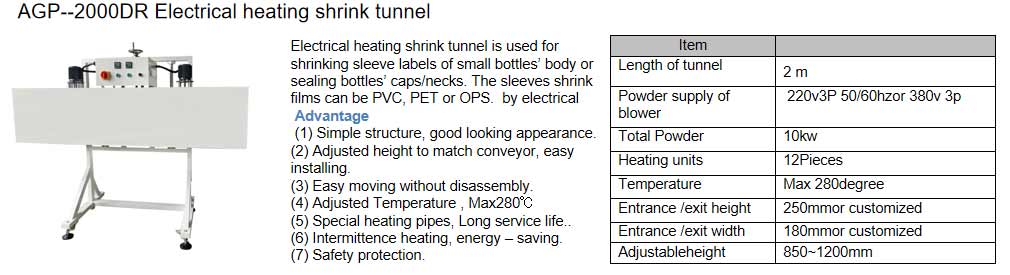

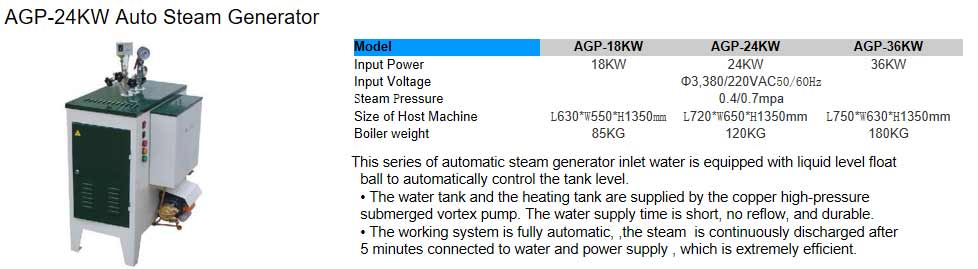

3 KINDS OF HEATING TUNNEL SOLUTION









Technical parameter

 MachineMachine modelAGP-100MCapacityMax 150bpm (with sleeve height 10cm)Size L*W*H2000*1050*2000mmWeight600KgsPowder supplyAC3-Phase 220/380VAccuracy≥99.5%Total powder2.5KW Shrinkable labelsMaterialsPVC、PET、OPSThickness0.03~0.13mmLabels Length20~320MmFlat widthMax200MmInner Dia. Of Labels roll76mm BottlesHeightMax320mmDiameterØ28- Ø125mmMaterialGlass、Metal 、PlasticShapesRound, square, flat, curved cup-shaped

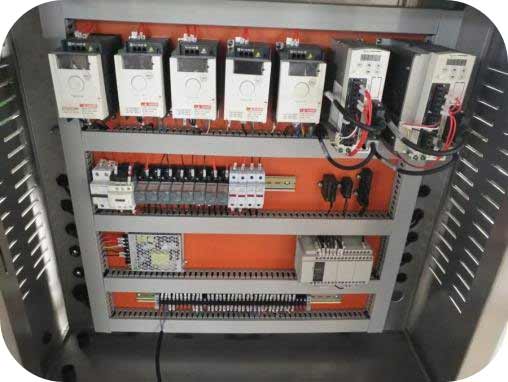

Electrical Configuration

No.

Desc

Style

Brand

1

PLC

FP-XHC40T

PANASONIC

2

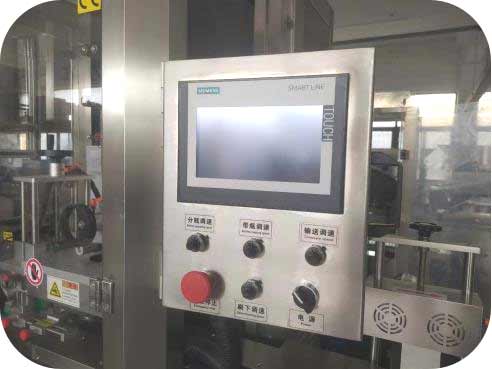

Touch screen

6AV6648-0CC11-3AX0

SIEMENS

3

Power switch

ABL2REM245K

SCHNEIDER

4

Low-voltage electric appliance

D181025A

SCHNEIDER

5

Circuit breaker

IC65N2PC32A

SCHNEIDER

6

Fuse

10AHG30-32

SCHNEIDER

7

Relay module

RXZE1M2C

SCHNEIDER

8

Relay socket

RXM2LB2BD

SCHNEIDER

9

Contactor

LC1D09M7C

SCHNEIDER

10

Emergency stop button

PR22

SCHNEIDER

vSeller shall have the right to change with the same quality or upgrade configurations without notification
