1. Product Introduction

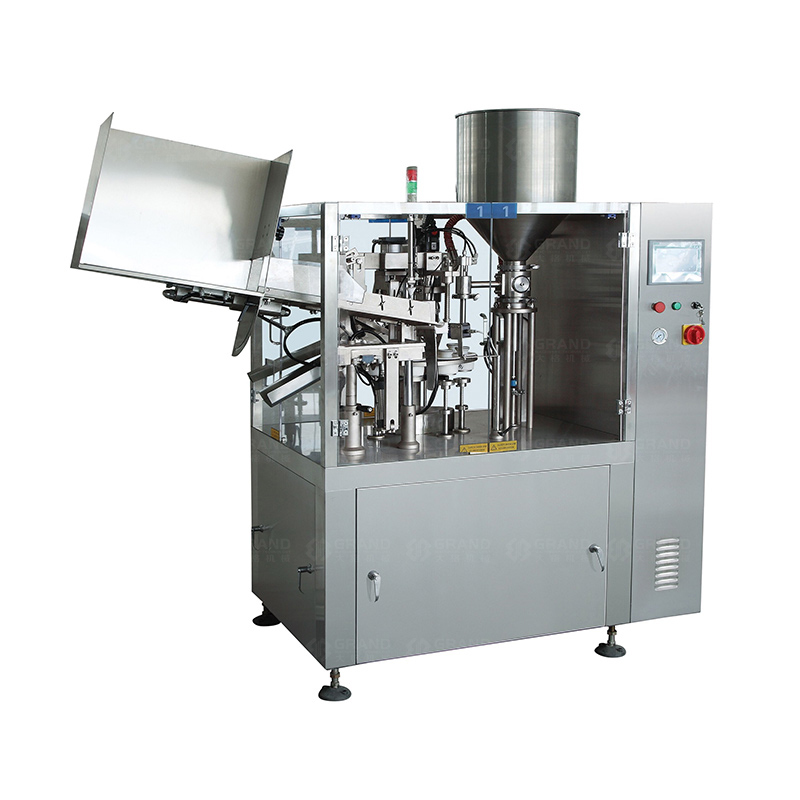

NF-60Z fully automatic aluminum tube filling and sealing machine is specially designed according to the ointment making process of cosmetics and ointments by introducing advanced foreign technology. This unit automatically loads tubes, aligns standards, heats and seals, pre-treatment system, and filling adopts mechanical piston type, electrical control system and operation platform system.

• Production speed (30-50 pieces/min)

• Filling range (5-250 ml/piece)

• Filling accuracy ≤±1%

• Room temperature (18-26℃)

• Matching motor (1.1 KW)

• Dimensions 1.95×1.0×1.8 (m)

• Weight: 850kg

• Working air pressure (0.5-0.7Mpa)

• The power supply is three-phase, four-wire AC, and the neutral line ≥2.5mm² must be properly grounded.

• Voltage (V): 380

• Frequency (Hz): 50

• Current (A): 25-30

• Aluminum tube diameter (mm): 13-35 (mm): Maximum tube length 210 (mm) (including bottle cap)

• Gas consumption (m³/min): 1.1

• Noise level (dB): <75

• Voltage variation: (±10%)

• Insulation barrel (KW): 2 (optional)

• Stirring power (KW): 0.18 (optional)

• It is necessary to clear the exhaust gas source, gas source pressure ≤8kgf/cm², exhaust volume ≥0.6m³/min

• With its own counting function and prompt function when reaching the set quantity

• Emergency stop alarm shutdown, door protection alarm shutdown, low air pressure alarm shutdown, overload alarm shutdown function

• No tube, no filling

• Automatic batch number engraving, automatic tube discharge

• Automatic tube loading, automatic labeling

• Automatic filling, tail cutting function of sticky materials

• The driving parts are installed under the platform, safe and pollution-free

• The filling and tail sealing parts are installed in a semi-enclosed and non-static visible cover. It is installed on the platform for easy observation and operation.

• The surface of the machine is smooth, without dead corners, non-toxic, odorless, pollution-free and easy to clean and maintain.

• The machine has a compact structure and simple operation, suitable for medicine, food, daily chemical and other industries.

• The design of the NF-60Z machine is in full compliance with the regulations and requirements of the pharmaceutical machinery industry and the drug production management regulations issued by the Food and Drug Administration.

• The design, production, assembly, commissioning and materials of the main components strictly comply with GMP requirements

• In addition, due to the continuous improvement of the company's equipment, changes to some electrical appliances and their accessories will not be notified separately.

• Machine materials

• To avoid contamination and make cleaning easier, the machine surface is made of stainless steel and steel (non-toxic nickel plating)

• Parts in direct contact with materials are 316L stainless steel, resistant to corrosion, weak acids and weak alkalis

• The machine body is made of high-quality steel

• The connecting parts of the machine are all high-quality products
