Main technical parameters

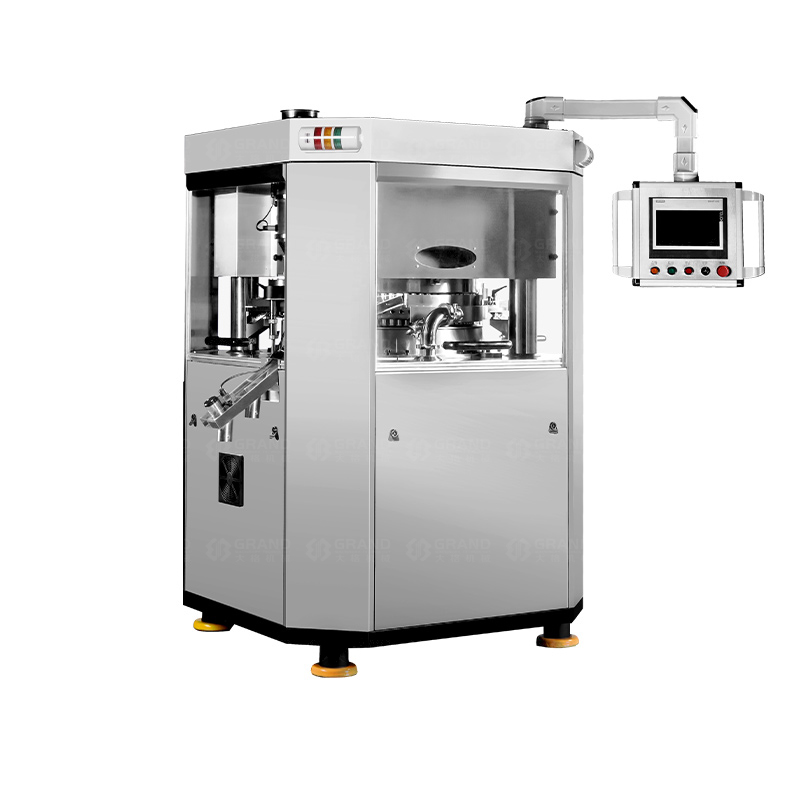

Model GZPK | 75 |
No. of station | 75 |
Maximum yield | 675000 |
Maximum speed | 75rps/min |
Maximum die diameter | 13 |
Maximum abnormal long axis | 16 |
Main pressure | 100KN |
Pre-pressure | 20KN |
Maximum filling depth | 20 |
Tablet thickness range | 0.5-8 |
Injection depth of upper punch | 2-6 |
Main motor power | 11KW |
Dimension | 1704*1380*1926 |
Net weight (KGS) | 4056 |
