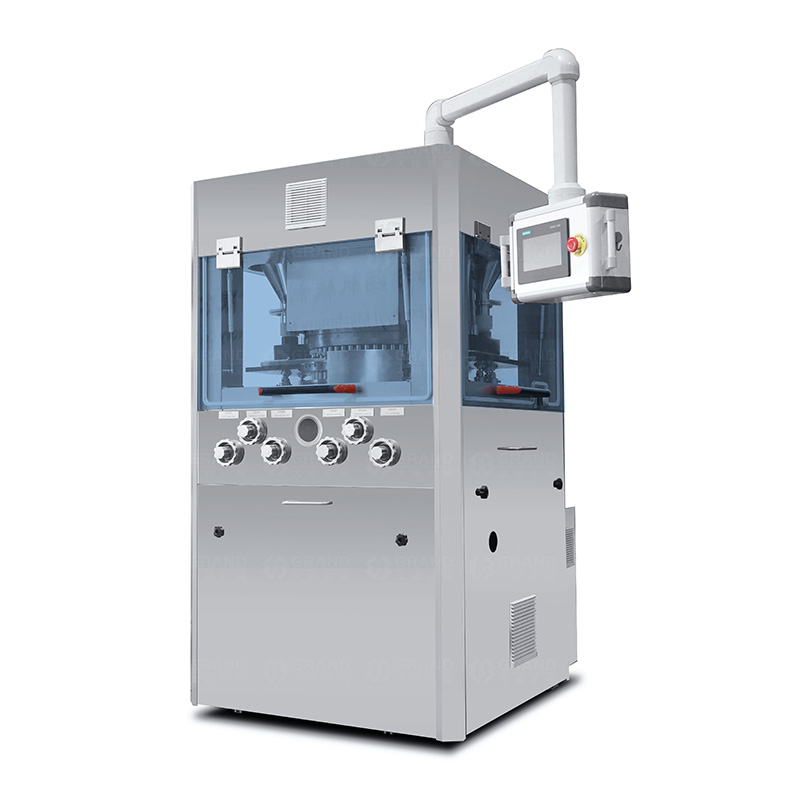

GZP500 Series Rotary Tablet Press
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. lt is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.
1. Brief Description
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. lt is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.
2. Main technical parameters
| Model | GZP500-35D | GZP500-43D | GZP500-55D |
| No. of Stations | 35 | 43 | 55 |
| Tooling Standard | D | B | B |
| Max Production Capacity(pcs/h) | 126000 | 154800 | 198000 |
| Max Turret Speed(r/min) | 0-30 | ||
| Max Pre-pressure(kn) | 40 | ||
| Max Pressure(kn) | 100 | ||
| Max FillingDepth(mm) | 18 | ||
| Max Tablet Thickness(mm) | 0.5~8 | ||
| Max Tablet Diameter(mm) | 25 | 18 | 13 |
| Motor Power(kw) | 7.5KW/380V,50Hz,Three-phase five-wire system | ||
| Overall Size(mm) | 1290*1200*1900 | ||
| Machine Weight(kg) | 3500 |
