1. Device Name

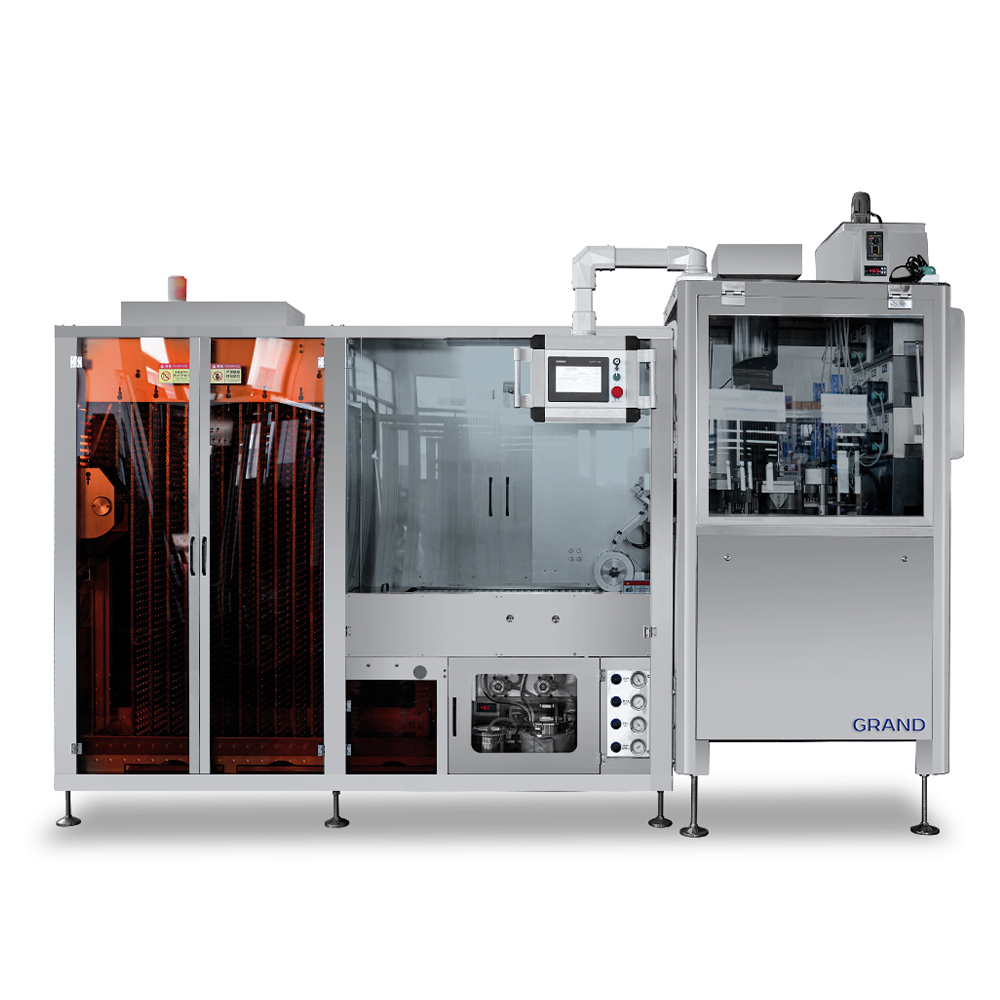

NJP-600 Fully Automatic Hard Capsule Liquid Filling and Sealing Machine
2. Main technical parameters
| Machine weight | 1500kg |
| Dimensions | 3565×1100×2100mm |
| Motor power | H.H.K.K.O |
| power supply | Three-phase four-wire AC 380V; 50Hz |
| Highest production capacity | 600 pellets/minute |
| Refillable capsule models | 00#～2# and safety capsules A～E |
| Capsule loading rate | ≥99.5% |
| noise | ≤75dBA |
| Difference in filling volume | Liquid 300mg or more ≤±3% |
| Compressed air | 0.06m3/min 0.3Mpa |
| Water source requirements | The water ring vacuum pump is equipped with a water tank for circulation and can also be connected to an external water source. |
| Vacuum degree | -0.02～-0.06 MPa |
| Water flow | 250L/h |
| Inlet pipe inner diameter | 20mm |
| Drain pipe inner diameter | 27mm |
| Operating temperature | 21℃±3℃ |
| Height requirements for work buildings | Manual feeding ≥2.6m, vacuum feeding ≥2.8m |
| Relative humidity of working environment | 40～55% |
| Exhaust volume | 300m3/h |
| Control System | Frequency conversion stepless speed regulation, PLC control |
| Material | Parts in direct contact with capsules and liquids are made of 304 and 316L high-quality stainless steel |
